HOUGHTON'S TRAMWAYS

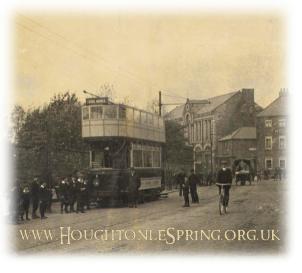

Trams in Houghton-le-Spring Broadway, circa 1910

Services for the Sunderland District Electric Tramways Co Ltd (SDET) came into operation on Saturday June 10th 1905, as an unconnected extension (business-wise and track-wise) to Sunderland Corporation’s pre-existing tram network in Sunderland and surrounds, which had originated in 1879 as a horse drawn tramway.
Copyright © Books of the North 2008 - 2009.
The Houghton Tramways route ran from Grangetown to Ryhope, Tunstall to Silksworth, East Herrington to Herrington Burn, Philadelphia, Newbottle and on to Houghton. Branches extended to Penshaw railway station via Shiney Row from Herrington Burn, and to Fencehouses station via Dubmire from Houghton. In 1906 the route, which covered 14.28 miles, was extended south to Hetton-le-Hole and Easington Lane.

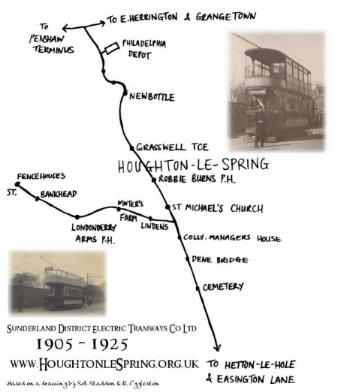

Track route for Sunderland District Tramways in the Houghton-le-Spring area, 1905 - 1925
Click diagram to see enlarged version

In early 1904, property had been purchased around Houghton for the extension of the tramway. Much of the land was Glebe Land – belonging to the Church – and was purchased from Houghton Rector, Canon Frederick Brown, and the Ecclesiastical Commissioners, allowing for the widening of roads for the addition of the tram tracks and cabling. Three parcels of land with a total area of 307 square yards were sold for £76 15 shillings on June 17th 1904, and 30 square yards from the Rectory Glebe Farm were sold for £15 on November 27th 1905.
Copyright © Books of the North 2008 - 2009.

Grants of easement – in effect written permission – was granted by the Church for the erection of posts for the tramway’s overhead wiring on the land it owned.
Copyright © Books of the North 2008 - 2009.

SDET signed an agreement with the Newcastle upon Tyne Electricity Supply Co (later known as North Eastern Electricity Board) on January 30th 1905 for the supply of electricity. The power generating set was based at Philadelphia, behind the Lambton, Hetton & Joicey Collieries power station, and produced a direct current (DC) for the tramway. It had been due to come into operation in May 1905 but was not completed, thus delaying the opening of the route by a month. Located nearby was the tram depot and twin sheds, which could house a total of eighteen trams (nine in each shed). Remnants of the tramcar sheds remain to this day on Philadelphia Lane, having been used as a garage for the National Coal Board and as a bus depot for Wear buses. The generating station is now a grade II listed building. Nearer to Houghton centre, the Sunderland District Tramways Ltd Parcel Receiving & Left Luggage Office was housed on the corner of Church Street and Durham Road, next to the Red Lion Inn. Copyright © Books of the North 2008 - 2009.

4 ft 8½ inch gauge tracks were laid across the district as a single line by teams of workmen, who were watched by many spectators. Passing loops were spaced at half-mile intervals, giving plenty of opportunities for trams travelling in different directions to pass each other without delay.

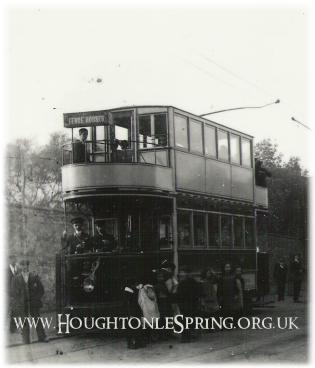

Thought to be one of the first trams to leave Houghton for Fencehouses, c1906

The new trams were paraded around the district during Whit Week, when the route was officially opened on June 10th 1905. Villagers posed for photographs alongside the fleet at each of the main stops. The open top tramcar number 1 was the first to reach Fencehouses station from Houghton, and was overflowing with children and ladies in smart harts when it reached its destination. The staff uniform featured shiny nickel buttons embossed with interwoven letters S-D-T. The Houghton to Hetton route was opened on October 20th 1905, and extended to Easington Lane in August 1906.
Copyright © Books of the North 2008 - 2009.
In the early days it was common for the drivers of horse and carts to travel along with the cart wheels in the tram track grooves, as this made for a smoother ride than the rough, unkempt roads. However, the tram tracks were not always a trouble free method of travel; the branch line to Fencehouses often encountered flooding from Moors Burn at the foot of Winter’s Bank, and many a tram had to negotiate the flood water. Seats on the upper deck would have been in high demand! Should a tram breakdown it could be towed back to the depot by another tram or even a steam traction engine.
Copyright © Books of the North 2008 - 2009.

The tram network provided a quick and convenient link between Houghton and North Eastern Railway trains at Fencehouses and Penshaw stations (particularly when compared to today’s transport where the quickest method of getting from Fencehouses to Houghton is by foot).

Tram 12 on its way to Houghton-le-Spring

It was not until 1920 that Sunderland Corporation and Sunderland District Tramways made an agreement allowing a through-route of both networks. The Grangetown termini of the two systems, which were a few yards apart, were joined on January 3rd 1921 but by this time motorised buses had already started to encroach on the tramways.
Copyright © Books of the North 2008 - 2009.

Not to be outdone by the competition, the Company operated its own fleet of motorbuses between Sunderland and South Hetton via Houghton. The buses, which still bore the words SUNDERLAND DISTRICT TRAMWAYS, became a regular sight across the district, and when purchased in 1924 caused a sensation, and were even mentioned in the press of Australia, as this extract from the Argus newspaper of Melbourne, Victoria, shows:

Tuesday September 2nd 1924
REPLACING TRAMS BY 'BUSES

The Sunderland District Electric Tramways Co. Ltd. dropped a veritable bombshell into the ranks of the motor 'bus companies, large and small, in the eastern area of County Durham. After unsuccessfully appealing to the Urban District Council to stop motor 'bus competition with their electric tramway service between Herrington and Penshaw, the company withdrew the trams altogether from that route and substituted motor 'buses. Now they have created a sensation by the purchase of 30 large 'buses, which they intend to run to a time table between Easington Lane and Sunderland, via Hetton and Houghton-le-Spring, a distance of 12 miles. It is generally believed that this move is the precedent to the abandonment altogether of electric tramway traction by the company in favour of the all-conquering motor 'bus.

Indeed it was. In 1924 a selection of four-wheeled trams from the fleet were sold and sent for use on the Bolton Corporation’s Church Road route, and the Houghton to Easington tram route changed to buses in June of that year. In 1925 sixteen tramcars were sold to the Grimsby Corporation Tramways Company. Other tramcars ended up with the Manchester Corporation Transport Company.

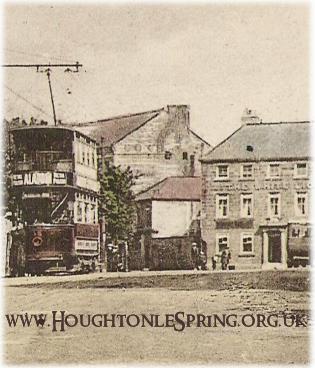

Houghton-le-Spring 1915: Trams on the left, Omnibuses on the right!

Sunderland District Tramways shut down on July 15th 1925.
Copyright © Books of the North 2008 - 2009.

The Company moved with the times and changed its name to Sunderland District Omnibus Company, and concentrated on running its fleet of blue buses. Forever remembered as the SDO Blue Bus Company, the business had an enquiry office at the corner of Church Street and Durham Road in Houghton for many years.
Copyright © Books of the North 2008 - 2009.

Sections of track were left embedded in the roads around Houghton, and one Houghtonian can remember playing on the disused tram tracks in Newbottle in the 1940s.
Copyright © Books of the North 2008 - 2009.

If you have photos or information about the Sunderland District Electric Tramways, please get in touch.

Paul Lanagan, local historian
www.houghton-le-spring.org.uk
April 2009

If you have enjoyed this article and would like to make a donation towards the website's costs please click below:



The last tram car to Houghton-le-Spring, c1908
A witty postcard from the early 1900s, which was altered accordingly for each town



ACKNOWLEDGEMENTS

:: Thanks go to Gordon Bulmer for helping to clarify the Sunderland District Tramways track route and for ongoing advice on Sunderland’s trams. Another nod to Alan Vickers for his continued help, this time with information about the tramways power supply.
:: The Tramways of Sunderland by S.A Staddon, 1964.
:: Railways of Britain: The Tramways of Sunderland by John Grant & Nathan Darroch, 2007.
:: Sunderland Corporation Transport 1900 – 1973 by Peter Gould.
:: Tyne & Wear Archives Service DU.EB/112.
:: Houghton in Old Picture Postcards by Ken Richardson.
:: British Tramway Company Buttons & Badges by Ashley Birch.
:: Vintage photos from Paul Lanagan’s collection.
:: The Bolton Evening News, November 13th 2001.

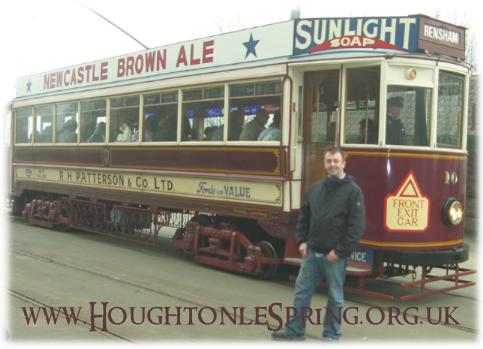

A tram at Beamish Museum, April 2009
Enhancing the writing process by visiting Beamish Museum's tram fleet
